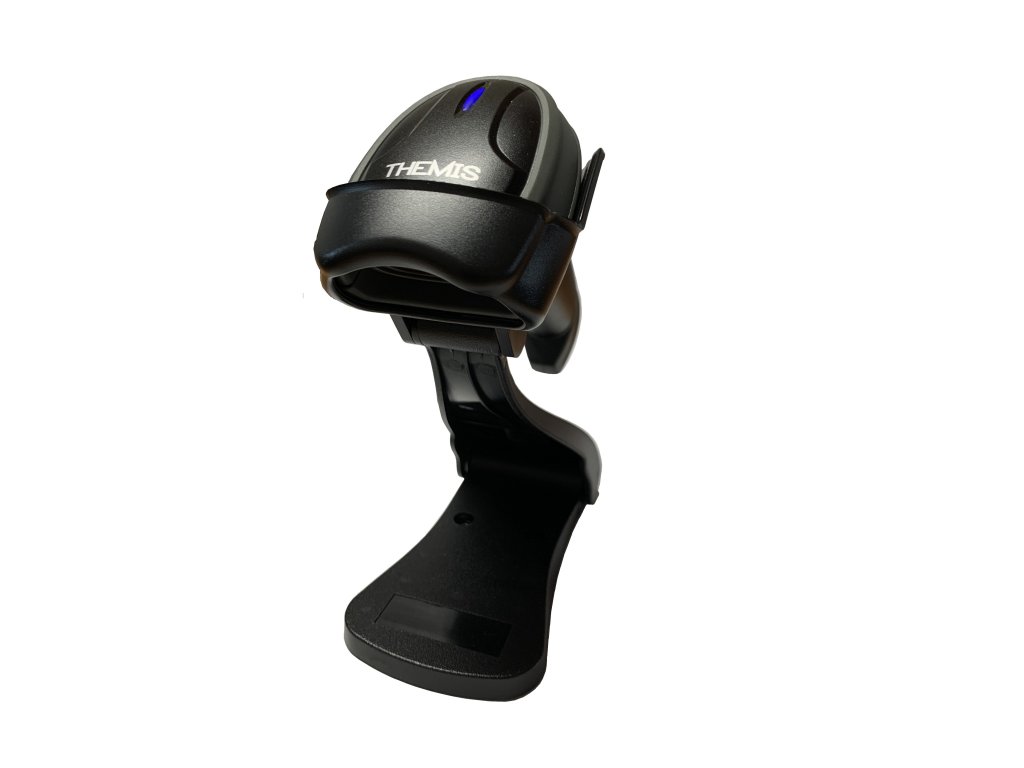

THEMIS TS-210
Kód: 409Související produkty
Detailní popis produktu
Item |
TS-100 |
TS-200 |
|---|---|---|
| Dimensions | 67mm (W) x 82mm (D) x 168mm (H) | 69mm (W) x 82mm (D) x 178mm (H) |
| Weight | 168g w/o cable | 146g w/o cable |
| Input Voltage | DC + 5V ± 0.25V | |
| Power Requirement | Operating: 100mA (0.5W) Standby: < 250mA |
Operating: 240mA (1.2W)
Standby: 80mA |
| Interface | RS-232, USB HID/virt. COM, PS/2 | |
| Environment | Operating: Temperature:0°C ~ +50°C Humidity:5% ~ 95% Storage Temperature: -40°C ~ +60°C Humidity: 15% ~ 80% |
Operating: Temperature: -10°C ~ +50°C Humidity: 5% ~ 95% Storage: Temperature: -20°C ~ +60°C Humidity: 15% ~ 80% |
| Drop Resistance | Multiple 4m drops to concrete | Multiple 2m drops to concrete |
| IP-Class | IP52 | |
| Barcode Types | All major 1D and GS1 DataBar | All major 1D, GS1 DataBar, 2D, DPM |
| Scan Rate | 200 scans/sec. | 640 x 480 pixel area image 60 frames/sec. |
| Reading Indicator | Beeper, LED | |
| Scanning Angle | ± 60°, ± 65°, ± 42° (skew, pitch, roll) |
± 60°, ± 40°, 360° (skew, pitch, roll) |
| Depth of Field | 5 mil 40-110mm 10 mil 10-280mm 13 mil 15-315mm 16 mil 25-385mm 35 mil 145-630mm |
5 mil Code 39 (3 char.) 15-55mm 13 mil UPC (6 char.) 5-130mm 20 mil Code 39 (5 char.) 40-180mm 6.7 mil PDF417 (20 char.) 10-82mm 10 mil DM (20 char.) 10-80mm 20 mil QR (20.char) 15-165mm |
| Light Source | 645 – 660nm ± 10 visible laser diode | – |
| Cable | 2m straight, RJ45, field replaceable | |
| Certification | CE, FCC, LVD | |
| Options | USB, PS/2, RS-232 interface selectable | |
| Accessories | Stand | |
| Color | Black | Gray |
Doplňkové parametry
| Kategorie: | Scannery |
|---|---|
| Záruka: | 2 roky |
