PARTNER GRACE (G5-K-i3)

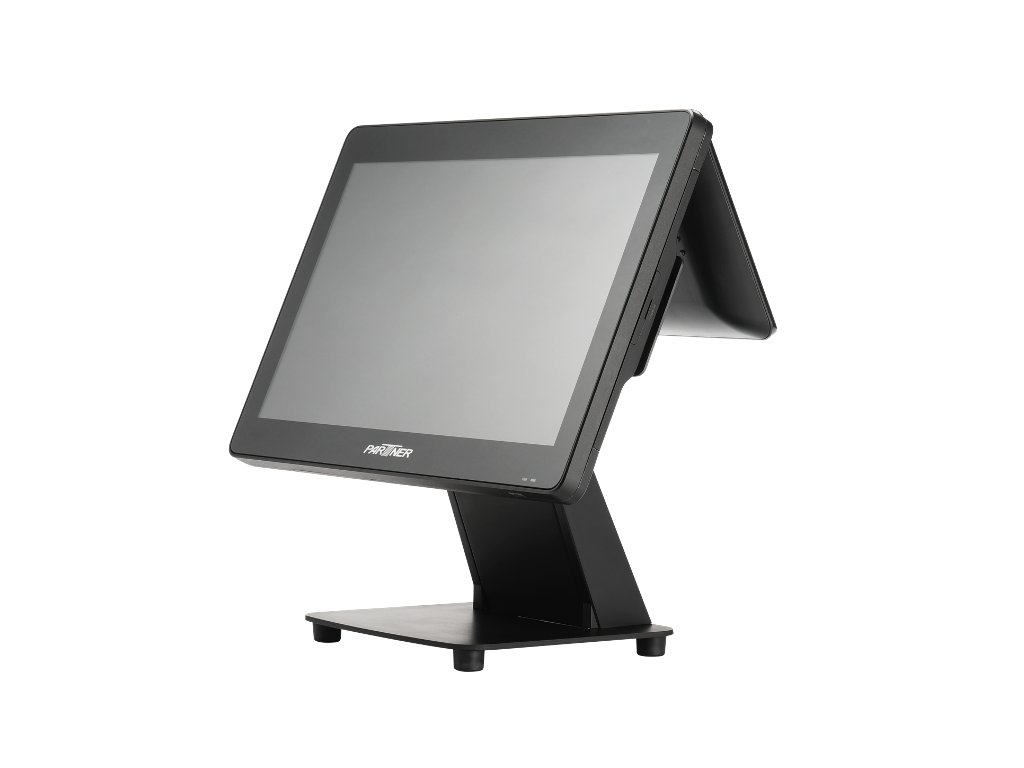

Grace G5-1

Intel® Celeron® J3455 (Apollo Lake) 1.50 GHz up to 2.30 GHz, Quad Core
Intel® Core™ i3-7100U (Kaby Lake), 2.40 GHz, Dual Core

Apollo Lake & Bay Trail: 4GB, 8GB DDR3L
Kaby Lake: 4GB, 8GB, 16GB DDR4

Apollo Lake & Bay Trail: 128GB / 256GB M.2 SATA SSD
Skylake & Kaby Lake: 128GB / 256GB M.2 PCIe Gen3.0 x2 SSD

Windows 10 IoT (64Bit) or Linux (Ubuntu)

1366 x 768

15.6″

220 nits

400:1

8 ms typ

262K

Right 45° Left 45° / Upper 15° Lower 35°

TFT-LCD with LED backlight

10-point PCAP touch

Apollo Lake & Kaby Lake
2 x Serial ports, RS232 (RJ45), 0V/5V/12V selection by BIOS (COM1, COM2)
2 x RJ45, IEEE 802.3 10/100/1000 Mbps Ethernet
4 x USB 3.0
1 x RJ11 Cash Drawer (for 2 cash drawers)
1 x DC 12 V input power-jack
1 x DC 12 V out
1 x Line-out
1 x HDMI
1 x VGA

1 x Mini-PCIe

1 x 3 Watts

PS-103 printer stand with Powered USB Hub
MSR
Multi-reader with MSR and IC Card Reader and (Fingerprint or RFID or i-Button)
10.1″ Customer Display / optional with touch
2 x 20 VFD
Powered USB add-on
Waiter Lock
Apollo Lake and Kaby Lake CPUs support up to 3 independent displays (Operation, Customer and Digital Signage)

Matte Black or Matte White

75 x 75

Aluminum stand and back, plastic stand cover

CB, EMC (CE, FCC, VCCI, BSMI), BSMI

AC-In 100~240V / DC-Out 12 V, 90 W

360 (W) x 270 (H) x 38 (D) mm

360 (W) x 350 (H) x 185 (D) mm

3.02 kg

4.94 kg

5°C ~ 40°C

-20°C ~ 60°C

15% ~ 80%

15% ~ 80%
