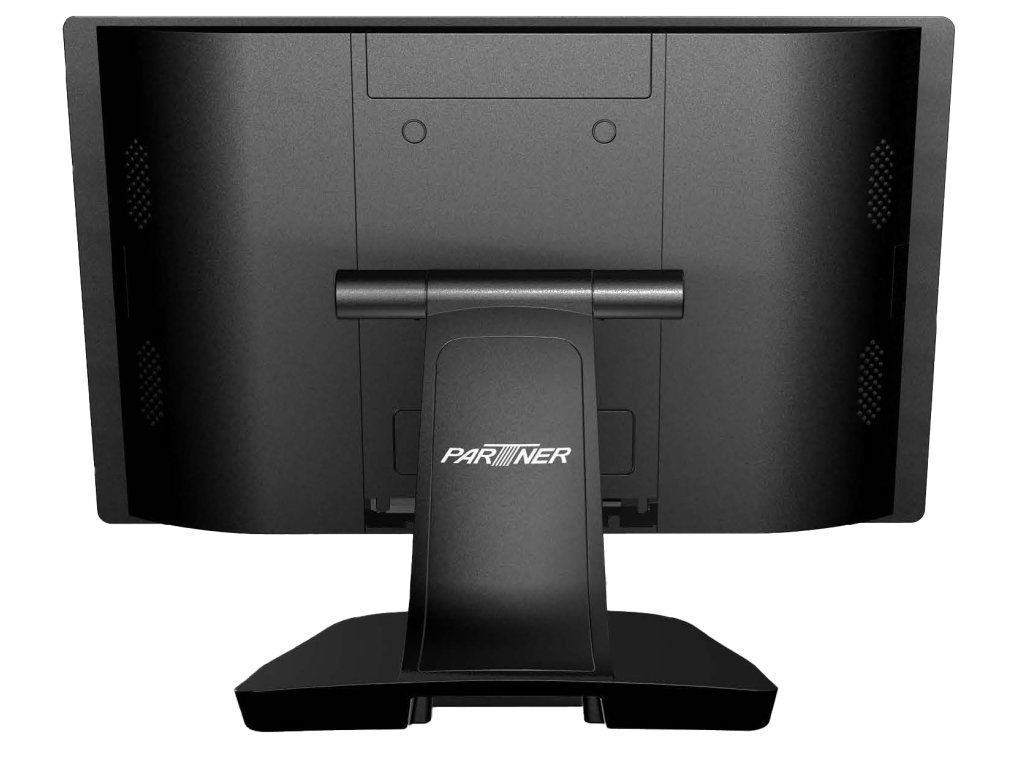

PARTNER DIANA D5 Intel Core i5-7300U (IOTG)
Kód: 204Detailní popis produktu
| MODELL | Diana D5-1 | ||||||||
| Processor (IOTG) | Intel Core i5-7300U (IOTG) | ||||||||
| Graphic | Chipset integrated | ||||||||
| System memory | 1 x 4GB DDR4 SO-DIMM memory | ||||||||
| Storage device | 1 x 128GB SSD, M.2 Interface | ||||||||
| LCD size | 15.6“ TFT LCD | ||||||||
| Brightness | 350 nits | ||||||||
| Resolution | 1920 x 1080 | ||||||||
| Touch screen | True-Flat PCAP multi-touch screen | ||||||||
| USB | 4 x USB 3.0, 5 x USB 2.0 | ||||||||
| Serial Port | 1 x RS-232 (COM1 is DB-9 w/DC 0V/+5V/+12V, selectable by BIOS, default setting is DC 0V) | ||||||||
| LAN | 1 x R-J45 (10/100/1000 Base-T) | ||||||||
| Cash drawer | 1 x RJ-11 (Support DC +12V) port supports 2 cash drawers | ||||||||
| VGA | 1x DB-15 (support DC 0V/+12V, selectable by BIOS, default setting is DC 0V) | ||||||||
| DC-Jack | 1x DC+12v jack with locked screw | ||||||||
| Powered USB Port (Op- tion) – TBC | 3x DC+12v Powered USB 1x DC+24v Powered USB | ||||||||
| Power button | 1 | ||||||||
| Internal Speaker | 1 x 2w | ||||||||
| LED Indicator | 1 for Power LED | ||||||||
| Mounting | VESA mount 75 x 75 | ||||||||
| Power adaptor | 60W/DC+12v input (Powered USB will use 180watt adaptor) – TBC |
||||||||
| Peripherals (Option) | 3-Track MSR, USB interface 2×20 character LCM, USB interface 10.1“ Resolution 1280 x 800 (16:10 wide screen), USB interface iButton reader, USB interface RFID reader, USB interface (develop by request) 2D Scanner, USB interface (develop by request)” |
||||||||
| Material | Die-Cast aluminum main unit with plastic covers | ||||||||
| Certificates | CE/FCC, Class A | ||||||||
| Dimensions (W x H x D mm) |
359.8 x 261.2 x 178 mm | ||||||||
| Weight | TBC | ||||||||
| Operating temp. | 0 ~ 40°C – TBC again after thermal test complete | ||||||||
| Storage Temp. | -20°C ~ 60°C | ||||||||
| Humidity | 20% ~ 80% RH non-condensing | ||||||||
| OS support | Windows 10 | ||||||||
Doplňkové parametry
| Kategorie: | PARTNER klasické terminály |
|---|---|
| Záruka: | 3 roky |
